In a high-energy physics experiment, an electron beam is incident on a dense metal target. As a result of interactions with the atomic nuclei in the target, bremsstrahlung radiation is produced. Which of the following statements is true about the characteristics and implications of the bremsstrahlung radiation produced in this scenario?

The intensity of bremsstrahlung radiation increases with the square of the atomic number (Z) of the target material.
Bremsstrahlung radiation spectrum is discrete with sharp peaks corresponding to the energy levels of the target atoms.
The production of bremsstrahlung radiation is more efficient for higher-energy incident electrons.
The maximum energy of the bremsstrahlung photons can exceed the kinetic energy of the incident electrons.
Bremsstrahlung radiation is predominantly emitted perpendicular to the direction of the incident electron's motion.

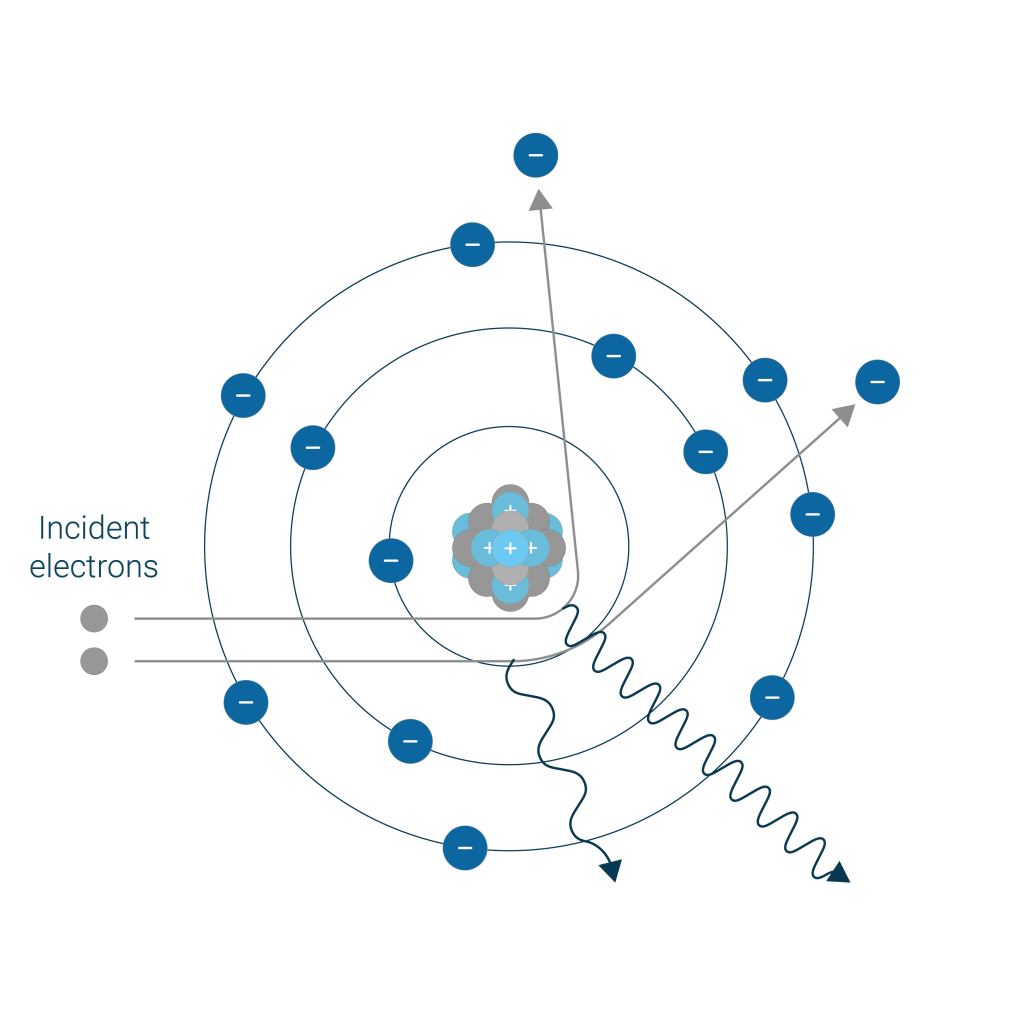

Based on the diagram above, which of the following statements is true regarding the interactions and their consequences?

Electrons interacting closely with the nucleus result in higher-energy bremsstrahlung radiation compared to more distant interactions.
The closer an electron passes to the nucleus, the lower the frequency of the emitted bremsstrahlung radiation due to decreased acceleration.
Distant interactions with the nucleus predominantly produce X-ray photons, while close interactions are more likely to emit gamma rays.
The probability of an electron being captured by the target atom's nucleus is highest during close interactions, leading to the emission of characteristic X-rays.
Electron interactions that occur at moderate distances from the nucleus lead to the production of photons with energies equivalent to the binding energy of the electron shells.

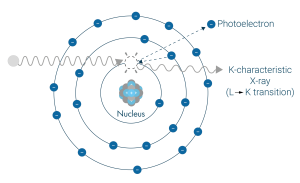

An X-ray photon with energy E₀ strikes a target atom, ejecting a photoelectron and subsequently resulting in the emission of a characteristic K X-ray due to an L to K shell transition. Which of the following statements accurately describes the processes or outcomes illustrated in this scenario?

The energy of the photoelectron is equal to the incident photon energy minus the binding energy of the K-shell electron.
The incident X-ray photon energy is less than the binding energy of the K-shell electron, resulting in the photoelectric effect.
The characteristic K X-ray has more energy than the incident X-ray photon due to additional energy absorbed during the L to K transition.
The ejection of a photoelectron is immediately followed by the emission of a characteristic X-ray photon from the L-shell.
The K-characteristic X-ray emitted in this process has a discrete energy specific to the target atom, but its intensity is directly proportional to the energy of the incident X-ray photon.

When a beam of high-speed electrons from the cathode strikes the anode, several interactions occur at the atomic level. Considering these interactions and their implications, which of the following statements is true regarding the anode’s function and the resulting X-ray characteristics?

The anode material has no significant effect on the efficiency of X-ray production, as it merely serves as a target for the electron beam.
The anode is angled to increase the effective surface area, which decreases the quality of the produced X-rays due to a reduction in energy concentration.
During operation, the anode's temperature remains constant, ensuring consistent X-ray production without any cooling mechanisms.
The rotating anode design is intended to focus the electron beam onto a smaller area, increasing the intensity and energy of the emitted X-rays.
The anode is typically made of tungsten because of its high melting point, which helps withstand the thermal stress during X-ray production.

Which of the following statements accurately describes the characteristics of the X-ray beam spectra?

The X-ray beam spectra consist exclusively of discrete lines corresponding to the characteristic X-rays of the anode material.
The continuous part of the X-ray spectrum, or bremsstrahlung radiation, shows a uniform distribution of photon energies from zero up to the maximum energy of the incident electrons.
The peak energy of the bremsstrahlung radiation in the X-ray spectrum is directly proportional to the cube of the voltage applied across the X-ray tube.
In the X-ray spectrum, the minimum wavelength corresponds to the maximum photon energy, which is determined by the voltage setting of the X-ray tube.
The intensity of the bremsstrahlung radiation in the X-ray spectrum decreases exponentially with increasing photon energy, resulting in more high-energy photons than low-energy photons.

Considering the various components of an X-ray tube, which of the following statements is true regarding these components and their functions?

The glass envelope of the X-ray tube is evacuated to create a high-vacuum environment that allows for the unimpeded flow of electrons from cathode to anode.
The cathode's primary function is to provide the necessary high voltage that accelerates the electrons toward the anode.
The anode is always stationary to ensure the precise focusing of the electron beam and to maximize the X-ray output.
The collimator is located within the X-ray tube itself and serves to focus the electrons onto the anode.
The filament in the cathode is made of aluminum because it efficiently emits electrons when heated and withstands the high temperatures involved.

Which of the following statements accurately describes the behavior of X-rays as they pass through different materials?

Coherent scattering occurs most frequently at high energies and is the primary interaction responsible for image contrast in X-ray imaging.
Photoelectric absorption is more likely to occur in materials with low atomic numbers, making it the dominant interaction in tissues composed of light elements.
Compton scattering is independent of the atomic number of the material and depends solely on the density of the electrons in the target material.
Pair production is a dominant X-ray interaction process at the energy levels typically used for medical imaging and diagnosis.
The probability of the photoelectric effect decreases with increasing photon energy and is inversely proportional to the cube of the photon energy.

Which of the following statements accurately reflects the function and impact of filters in X-ray imaging?

Aluminum filters are placed in the X-ray beam to increase the overall intensity of the radiation by preventing low-energy X-rays from being absorbed by the patient's body.
Copper filters are used in diagnostic radiology to harden the X-ray beam by selectively absorbing higher-energy photons, thereby reducing the skin dose.
A filter with a high atomic number, such as rhodium, is used in mammography to produce a softer beam that enhances the contrast between different soft tissues.
Added filtration, such as molybdenum, is used to increase the penetrating power of the X-ray beam for imaging dense structures like bones.
The use of k-edge filters in X-ray tubes results in monochromatic X-ray beams, which are essential for standard imaging procedures.

In X-ray imaging, grids are utilised to improve image quality by reducing the amount of scattered radiation that reaches the image receptor. Which of the following statements is true concerning the use of grids in X-ray systems?

Grids are placed between the X-ray tube and the patient to absorb primary radiation and shape the X-ray beam before it enters the body.
Air-gap techniques can serve as an alternative to physical grids, relying on increased object-to-image receptor distance to allow scattered photons to diverge and miss the receptor.
Crossed grids are less efficient in scatter reduction compared to parallel grids because they absorb more primary radiation.
Focusing grids are designed with lead strips parallel to each other, which is optimal for capturing scatter from all angles without absorbing primary radiation.
The grid ratio, which is the ratio of the height of the lead strips to the distance between them, does not affect the contrast of the X-ray image.

Various techniques are employed to achieve scatter reduction. Which of the following statements correctly describes one of these scatter reduction techniques?

Increasing the kVp (kilovoltage peak) setting on the X-ray tube is a common method to reduce scatter because it decreases the number of low-energy photons that contribute to scatter.
Using a smaller field of view (FOV) for the X-ray beam limits the tissue volume irradiated, thereby reducing the overall volume of tissue available to produce scatter.
Adding anti-scatter grids between the patient and the image receptor increases scatter because the grids cause more X-rays to be scattered.
Compression paddles are used in imaging soft tissues to spread them evenly, which significantly increases the amount of scatter radiation produced.
In digital radiography, post-processing algorithms can be applied to raw images to distinguish and subtract scatter, thereby eliminating the need for physical scatter reduction methods.

Which of the following statements correctly describes a feature or function of digital radiography detectors?

Charge-coupled device (CCD) detectors use scintillation materials to directly convert X-ray photons into an electrical charge without the need for an intermediate light conversion.
Direct flat-panel detectors utilise a photoconductor material such as amorphous selenium to convert incoming X-ray photons directly into an electric charge, thereby bypassing the need for light conversion.
Indirect flat-panel detectors typically incorporate a cesium iodide (CsI) scintillator to absorb X-rays and convert them into visible light, which is less efficient than direct conversion methods.
All digital radiography systems require the same amount of X-ray exposure as traditional film-screen systems to produce images of comparable diagnostic quality.
In digital radiography, the image quality and resolution are primarily determined by the physical size of the detector, with larger detectors inherently producing higher resolution images.

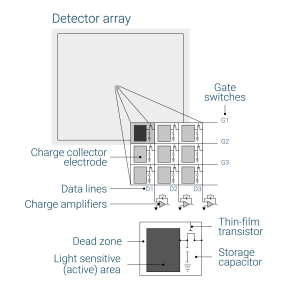

Based on the structure depicted in the diagram, which of the following statements is true about the dead zone and the active area in a digital radiography detector?

The dead zone consists of charge collector electrodes and data lines, which are essential for enhancing the resolution of the image by collecting and amplifying the signal.
Active areas in the detector array are surrounded by dead zones to shield the image-forming areas from electronic noise and cross-talk between pixels.
A high fill-fraction is undesirable in digital radiography detectors as it reduces the space available for charge collection and amplification electronics, thereby diminishing image resolution.
In the detector array, the light-sensitive area is responsible for the direct conversion of X-rays to electric signals, and the dead zone is the non-responsive part that does not contribute to image capture.
The dead zone of the detector array is equipped with thin-film transistors (TFTs) and storage capacitors to directly capture and store X-ray photons, forming the primary imaging area.
